| Professional Deluxe Spray Gun |
| |
 17A2905 Professional Deluxe Gravity Feed Spray Gun |
Specification
| Technicaldata |
17A2905 |
| Air Pressure |
3.5~5 BAR, 50~70 PSI |
| Air Inlet |
1/4" |
| Fluid Inlet |
M16x1.5P |
| Air Consumption |
14 CFM, 250~320 L/MIN |
| Weight |
0.6 KGS (1.3 LBS) |
| Capacity of Cup Liter |
0.6 L |
| Type of Cup |
Nylon |
| Standard Fluid Tip Size |
1.4 MM |
| Length x Height |
170x325 MM |
| Feed Type |
Gravity |
| Recommended Usage |
Medium Solids, Colors&Clears |
|

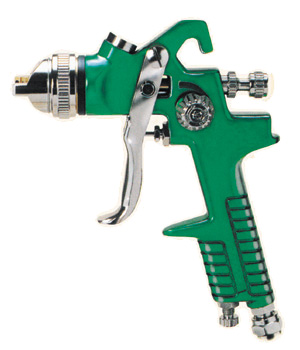

17A2905/HVLP Professional HVLP Gravity Feed Spray Gun |
Specification
| Technicaldata |
17A2905/HVLP |
| Air Pressure |
4 BAR, 60 PSI |
| Air Inlet |
1/4" |
| Fluid Inlet |
M16x1.5P |
| Air Consumption |
13 CFM, 364 L/MIN |
| Weight |
0.74 KGS (1.63 LBS) |
| Capacity of Cup Liter |
0.6 L |
| Type of Cup |
Nylon |
| Standard Fluid Tip Size |
1.4 MM |
| Length x Height |
170x325 MM |
| Feed Type |
Gravity |
| Recommended Usage |
High Solids, Colors&Clears |
Comes Complete With Pressure Regulator
|

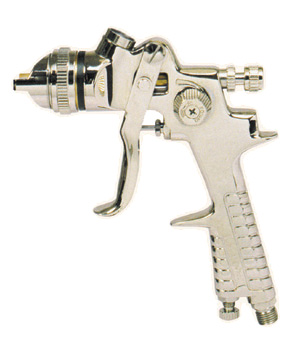

17A2906 Professional Deluxe Gravity Feed Spray Gun |
Specification
| Technicaldata |
17A2906 |
| Air Pressure |
3.5~5 BAR, 50~70 PSI |
| Air Inlet |
1/4" |
| Fluid Inlet |
M16x1.5P |
| Air Consumption |
14 CFM, 250~320 L/MIN |
| Weight |
0.5 KGS (1.1 LBS) |
| Capacity of Cup Liter |
0.6 L |
| Type of Cup |
Nylon |
| Standard Fluid Tip Size |
1.4 MM |
| Length x Height |
170x325 MM |
| Feed Type |
Gravity |
| Recommended Usage |
Medium Solids, Colors&Clears |
|

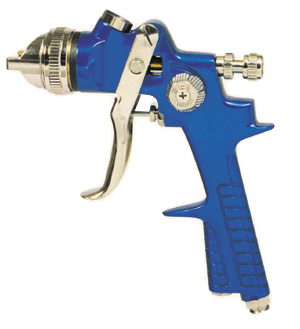

17A2906/HVLP Professional HVLP Gravity Feed Spray Gun |
Specification
| Technicaldata |
17A2906/HVLP |
| Air Pressure |
4 BAR, 60 PSI |
| Air Inlet |
1/4" |
| Fluid Inlet |
M16x1.5P |
| Air Consumption |
13 CFM, 364 L/MIN |
| Weight |
0.6 KGS (1.32 LBS) |
| Capacity of Cup Liter |
0.6 L |
| Type of Cup |
Nylon |
| Standard Fluid Tip Size |
1.4 MM |
| Length x Height |
170x325 MM |
| Feed Type |
Gravity |
| Recommended Usage |
High Solids, Colors&Clears |
Comes Complete With Pressure Regulator
|

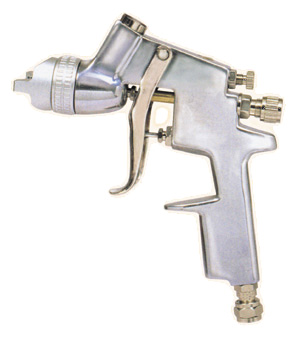

17A2907 Professional Gravity Feed Spray Gun |
● Large uniform spray pattern.
● Prefect balance.
● Superior fully polished gun body for durability and reliability
. |
Specification
| Technicaldata |
17A2907 |
| Air Pressure |
3.5~5 BAR, 50~70 PSI |
| Air Inlet |
1/4" |
| Fluid Inlet |
M16x1.5P |
| Air Consumption |
14 CFM, 396 L/MIN |
| Weight |
1 KGS (2.2 LBS) |
| Capacity of Cup Liter |
0.6 L |
| Type of Cup |
Nylon |
| Standard Fluid Tip Size |
1.5 MM |
| Length x Height |
170x355 MM |
| Feed Type |
Gravity |
| Recommended Usage |
High Solids, Colors&Clears |

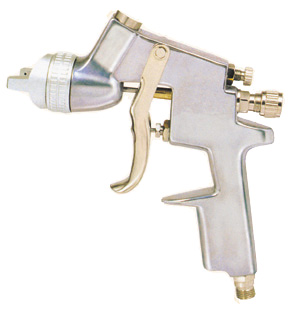

17A2907/HVLP Professional Deluxe Gravity Feed Spray Gun |
● Engineered and manufactured using most advanced CNC technology .
● Superior atomization with low air consumption and high transfer efficiency well
above 65%.
● Production speed equals to conventional style gun at any spray distance.
|
Specification
| Technicaldata |
17A2907/HVLP |
| Air Pressure |
3 BAR, 43 PSI |
| Air Inlet |
1/4" |
| Fluid Inlet |
M16x1.5P |
| Air Consumption |
12.5 CFM, 350 L/MIN |
| Weight |
1 KGS (2.2 LBS) |
| Capacity of Cup Liter |
0.6 L |
| Type of Cup |
Nylon |
| Standard Fluid Tip Size |
1.5 MM |
| Length x Height |
170x355 MM |
| Feed Type |
Gravity |
| Recommended Usage |
High Solids, Colors&Clears |
Comes Complete With Pressure Regulator |
|
| |
