| Deluxe Spray Gun |
| |

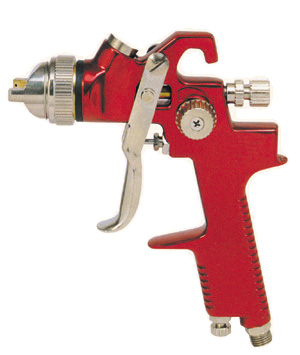

17A2911 Professional HVLP Spray Gun (Forged Aluminum Body) |
Specification
| Technicaldata |
17A2911 |
| Air Pressure |
3~4 BAR, 43~60 PSI |
| Air Inlet |
1/4" |
| Fluid Inlet |
M16x1.5P |
| Air Consumption |
10~13 CFM, 283~364 L/MIN |
| Weight |
1 KGS (2.2 LBS) |
| Capacity of Cup Liter |
0.6 L |
| Type of Cup |
Nylon |
| Standard Fluid Tip Size |
1.4 MM |
| Length x Height |
175x325 MM |
| Feed Type |
Gravity |
| Recommended Usage |
High Solids, Colors&Clears |
Comes Complete Pressure regulator
|

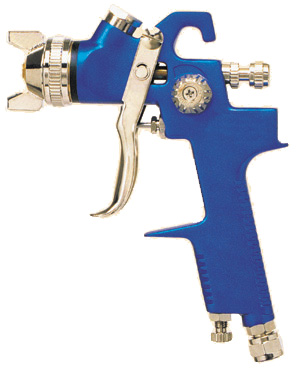

17A2911/HVLP Deluxe Gravity Feed Spray Gun (Forged Aluminum Body) |
● One piece drop forged construction.
● Stainless steel fluid passage.
● Top grade anodized finish for durability and reliability.
● Precise control sdjustments.
|
Specification
| Technicaldata |
17A2911/HVLP |
| Air Pressure |
3.5~5 BAR, 50~70 PSI |
| Air Inlet |
1/4" |
| Fluid Inlet |
M16x1.5P |
| Air Consumption |
14 CFM, 396 L/MIN |
| Weight |
0.6 KGS (1.3 LBS) |
| Capacity of Cup Liter |
0.6 L |
| Type of Cup |
Nylon |
| Standard Fluid Tip Size |
1.4 MM |
| Length x Height |
175x325 MM |
| Feed Type |
Gravity |
| Recommended Usage |
Midium Solids, Colors&Clears |
|

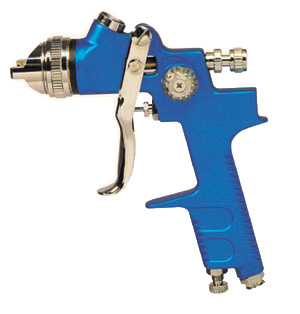

17A2912/HVLP Professional HVLP Spray Gun (Forged Aluminum Body) |
Specification
| Technicaldata |
17A2912 |
| Air Pressure |
3~4 BAR, 43~60 PSI |
| Air Inlet |
1/4" |
| Fluid Inlet |
M16x1.5P |
| Air Consumption |
10~13 CFM, 283~364 L/MIN |
| Weight |
1 KGS (2.2 LBS) |
| Capacity of Cup Liter |
0.6 L |
| Type of Cup |
Nylon |
| Standard Fluid Tip Size |
1.4 MM |
| Length x Height |
175x325 MM |
| Feed Type |
Gravity |
| Recommended Usage |
High Solids, Colors&Clears |
Comes Complete Pressure regulator
|
| |
| |
