Electrostatic spraying machine is designed for family dining sets, outdoor decoration, electrical appliances, and piping bury with high tensile, durability, liquid electrostatic-type and electrostatic powder type.
The liquid electrostatic coating machine is most suitably used for spraying with metallic coating materials. This electrostatic power spraying machine has been developed to provide simple operation, additional safety,energy saving efficiency and to limit pollution.
Application:
Hardware Parts, Appliance parts, Auto Parts, Steel furniture,
Plating protection, Wood Products.
Features:
Excellent Performance, High-Efficiency Spray Coating, Easy Maintenance, Long life,
Suitable for high-quality spray coating, A Wide Selection of Coating Materials,
High Level of Safety
Products Specification:

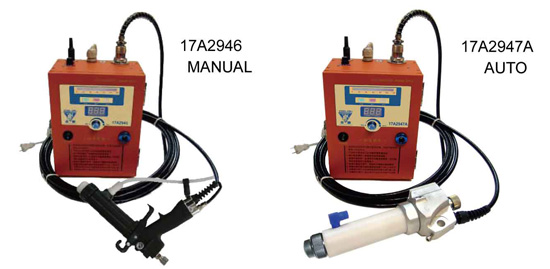

• Model: 17A2946 or 17A2947A
• Capacity for withstanding voltage: DC-80KV
• Voltage used for operation: DC-10~-80KV
• Total length (spray gun body): 232mm
When the 17A2947A-NOZZLE-F flat spray nozzle is installed275 mm
When the 17A2947A-NOZZLE-R or 17A2947A-NOZZLE-S round spray nozzles
are installed300 mm
• Spray gun weight (not including the cables, hoses, or nozzles): 1.5kg
• Power cable length: 3m、5m、10m、15m
• Coating material pressure: 0.3Mpa / 0.8Mpa
• Air pressure: 0.05Mpa / 0.8Mpa
|
